    Capping orals a pictoral guide!

    This guide to manufacturing your own capsules is brought to you by Black Lion Research.


    Here we will make caps with 100mg active ingredient each.
    Ill give you a supply list and show you how to use a hand capsule press.
    In addition Ill show you how to use geometric dilution to measure and mix your ingredients properly. Failure to do this can result in severe dosage issues.
    Some caps will have 100 mg...some 2mg some 500mg unless geometric dilution is employed.
    Lets get started.
    All information provided by me is for research purpose only. I do not sell illegal compounds nor can I supply anyone with a source for raw materials.




  2. #2
    Moderator
    MODERATOR
    brundel's Avatar


    Join Date
    Aug 2008
    Gender
    Male
    Location
    Pedal to the metal
    Posts
    2,665
    Rep Points
    234871100

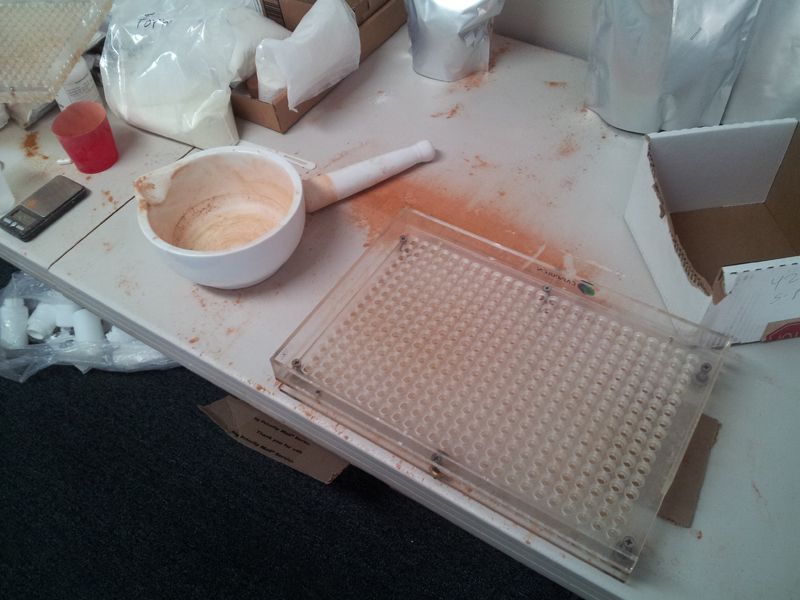

    Supplies needed:

    Active ingredient 40g
    filler ingredient 180g
    Capping machine *
    Mortar and pestle
    400 gelatin caps-empty size -00-
    Digital scale

    * you will more than likely be using a 25 or 50 cap machine. Simply adjust accordingly.
    Each -00- cap will hold roughly 550mg of a dense powder. In this case we needed 220grams for 400 caps. You can estimate the total volume needed by hand filling one capsule, pouring out the contents and weighing it. From there multiply that number x the number of caps in your machine.

    ======================

    FILLING THE MACHINE WITH CAPS


    Attach the fill tray to the bottom portion of the machine. This is where the larger half of the caps go.



    Then pour in bottoms, cover the space on the bottom right with the pal of your hand and shake. The caps will fall into place.
    Last edited by brundel; 02-28-2013 at 01:00 PM.
    All information provided by me is for research purpose only. I do not sell illegal compounds nor can I supply anyone with a source for raw materials.




  3. #3
    Moderator
    MODERATOR
    brundel's Avatar


    Join Date
    Aug 2008
    Gender
    Male
    Location
    Pedal to the metal
    Posts
    2,665
    Rep Points
    234871100

    Once full.


    Repeat with the tops.


    Attach the position tray and set the tops portion aside.
    Last edited by brundel; 02-28-2013 at 01:01 PM.
    All information provided by me is for research purpose only. I do not sell illegal compounds nor can I supply anyone with a source for raw materials.




  4. #4
    Moderator
    MODERATOR
    brundel's Avatar


    Join Date
    Aug 2008
    Gender
    Male
    Location
    Pedal to the metal
    Posts
    2,665
    Rep Points
    234871100

    WEIGHING AND MIXING

    Geometric dilution. In order to be certain our active ingredient is evenly distributed throughout the mixture and to ensure consistent dosing in every capsule, geometric dilution must be employed. Watch this short video explaining and demonstrating geometric dilution.

    video


    40g active ingredient:


    Equal amount filler:


    I always go just a hair over in weight. I always did this with my gear and I pass on this rule of thumb to my supplements. Black Lion Products are ALWAYS just a tad overdosed.


    As seen in the video youll use a mortar and pestle to mix equal amounts of active and filler.


    Here is the final mix after performing geometric dilution.
    Last edited by brundel; 02-28-2013 at 01:08 PM.
    All information provided by me is for research purpose only. I do not sell illegal compounds nor can I supply anyone with a source for raw materials.




  5. #5
    Moderator
    MODERATOR
    brundel's Avatar


    Join Date
    Aug 2008
    Gender
    Male
    Location
    Pedal to the metal
    Posts
    2,665
    Rep Points
    234871100

    FILLING THE CAPS

    Attach the rim guide.
    Pour the mixed powder onto the tray. This is the same technique for every cap machine 15 cap and 600 cap.


    Spread the powder out and fill the cap evenly.


    Use the tamp to pack the capsules.
    All information provided by me is for research purpose only. I do not sell illegal compounds nor can I supply anyone with a source for raw materials.




  6. #6
    Moderator
    MODERATOR
    brundel's Avatar


    Join Date
    Aug 2008
    Gender
    Male
    Location
    Pedal to the metal
    Posts
    2,665
    Rep Points
    234871100

    PRESSING THE CAPS


    Once the caps are evenly filled.


    Press the portion with the tops onto the bottom portion and apply pressure. You will then have this:


    And we are finished. Dump them into a bin for counting and dispensing.


    And we are done
    All information provided by me is for research purpose only. I do not sell illegal compounds nor can I supply anyone with a source for raw materials.




  7. #7
    Senior Member
    ELITE MEMBER
    bdeljoose's Avatar


    Join Date
    Jul 2011
    Gender
    Male
    Location
    usa
    Posts
    957
    Rep Points
    90892263

    Good post. Should be a sticky.

  8. #8
    THE WAR PIG
    SUPER MODERATOR
    XYZ's Avatar


    Join Date
    Jun 2010
    Gender
    Male
    Location
    IM
    Posts
    5,442
    Rep Points
    2147483647

    Nice work!

  9. #9
    Moderator
    MODERATOR
    brundel's Avatar


    Join Date
    Aug 2008
    Gender
    Male
    Location
    Pedal to the metal
    Posts
    2,665
    Rep Points
    234871100

    Im gonna put some others up soon as well.
    All information provided by me is for research purpose only. I do not sell illegal compounds nor can I supply anyone with a source for raw materials.




  10. #10
    Moderator
    MODERATOR
    brundel's Avatar


    Join Date
    Aug 2008
    Gender
    Male
    Location
    Pedal to the metal
    Posts
    2,665
    Rep Points
    234871100

    Hopefully guys will see it in the sticky section.
    Im gonna put up some more later. Maybe tonight.
    All information provided by me is for research purpose only. I do not sell illegal compounds nor can I supply anyone with a source for raw materials.




  11. #11
    Registered User


    Join Date
    Mar 2011
    Gender
    Male
    Location
    earth
    Posts
    2,918
    Rep Points
    137490307

    very nice pic tutorial

  12. #12
    Moderator
    MODERATOR
    brundel's Avatar


    Join Date
    Aug 2008
    Gender
    Male
    Location
    Pedal to the metal
    Posts
    2,665
    Rep Points
    234871100

    Can you guys see all of the pictures? Someone said they cant see the pics in the first few posts.
    All information provided by me is for research purpose only. I do not sell illegal compounds nor can I supply anyone with a source for raw materials.




  13. #13
    Moderator
    MODERATOR
    TGB1987's Avatar


    Join Date
    Feb 2011
    Gender
    Male
    Location
    Pennsylvania
    Posts
    2,482
    Rep Points
    490784210

    Very nice



  14. #14
    Moderator
    MODERATOR
    brundel's Avatar


    Join Date
    Aug 2008
    Gender
    Male
    Location
    Pedal to the metal
    Posts
    2,665
    Rep Points
    234871100

    TGB can you see the pictures in posts 2-4?
    All information provided by me is for research purpose only. I do not sell illegal compounds nor can I supply anyone with a source for raw materials.




  15. #15
    Registered User
    hypo_glycemic's Avatar


    Join Date
    Dec 2010
    Gender
    Male
    Location
    USA
    Posts
    2,740
    Rep Points
    749675402

    Capping orals a pictoral guide!

    On tapatalk,I can't see #2 or #3..

  16. #16
    Moderator
    MODERATOR
    brundel's Avatar


    Join Date
    Aug 2008
    Gender
    Male
    Location
    Pedal to the metal
    Posts
    2,665
    Rep Points
    234871100

    Ok Ill fix it.
    All information provided by me is for research purpose only. I do not sell illegal compounds nor can I supply anyone with a source for raw materials.




  17. #17
    Moderator
    MODERATOR
    brundel's Avatar


    Join Date
    Aug 2008
    Gender
    Male
    Location
    Pedal to the metal
    Posts
    2,665
    Rep Points
    234871100

    Everything should be clear now. Let me know if you still cant see the pics.

    Im gonna put up a guide to liquid orals a bit later.
    All information provided by me is for research purpose only. I do not sell illegal compounds nor can I supply anyone with a source for raw materials.




  18. #18
    Member


    Join Date
    Feb 2012
    Gender
    Male
    Location
    california, usa
    Posts
    90
    Rep Points
    9767811

    Great post. Should be helpful to those thinking about buying bulk powders or bulk supplements.

  19. #19
    Registered User
    bigant46's Avatar


    Join Date
    Oct 2012
    Gender
    Male
    Location
    boston,ma.
    Posts
    83
    Rep Points
    6303082

    Hey brundel. Im stuck. I got the caps size 0 cap machine and tengrams of cialis powder. They are usudd ally 20mg caps. I didnt know if i had to dilute and i defenitely didnt yeild 500. caps. Are these things overdosed? They arre pretty powerful. My dick is a machine rigjt

  20. #20
    Newbie
    ELITE MEMBER
    a1hunglowe's Avatar


    Join Date
    Jun 2013
    Gender
    Male
    Location
    ohio
    Posts
    19
    Rep Points
    257712

    This is by far the best example of capping I have seen illistrated.Thank you very much

  21. #21
    Still growin
    BOARD REP
    Swfl's Avatar


    Join Date
    Dec 2012
    Gender
    Male
    Location
    Somewhere warm
    Posts
    1,954
    Rep Points
    456639070

    First rate as usual thanks!
    I'll get there or Die trying...

  22. #22
    Is pure Awesomeness
    ELITE MEMBER
    robbiek426's Avatar


    Join Date
    May 2011
    Gender
    Male
    Location
    Outside my head
    Posts
    1,193
    Rep Points
    135231536

    Awesome pictorial! Thanks for this info brother!

  23. #23
    Member
    BOARD REP
    rclabwholesale's Avatar


    Join Date
    Mar 2014
    Gender
    Male
    Location
    USA
    Posts
    272
    Rep Points
    14222315

    Good shots, very informative read

  24. #24
    Senior Member
    BOARD REP
    SwoleZilla's Avatar


    Join Date
    Dec 2010
    Gender
    Male
    Location
    In the gym
    Posts
    2,617
    Rep Points
    90325999

    great idea of posting pics. makes it very easy


    **All information discussed is for entertainment purposes only!**

  25. #25
    Junior Member
    BOARD REP
    The-Doctor's Avatar


    Join Date
    Feb 2014
    Gender
    Male
    Location
    Gallifrey
    Posts
    73
    Rep Points
    1920983

    Hey bud,

    thank you for the great post. How much did the capping station cost you if you don't mind me asking?

  26. #26
    Registered User


    Join Date
    Aug 2011
    Gender
    Male
    Location
    Brooklyn
    Posts
    35
    Rep Points
    10

    Good info
    Orbit Nutrition Rep
    Use code SOCIAL for 10% off your order at Orbitnutrition.com
    I'm a Brooklyn boy I may take some gettin' use to

  27. #27
    Newbie


    Join Date
    May 2014
    Gender
    Male
    Location
    Sailing...
    Posts
    2
    Rep Points
    10

    How long of a process is it from start to finish in capping those orals??
